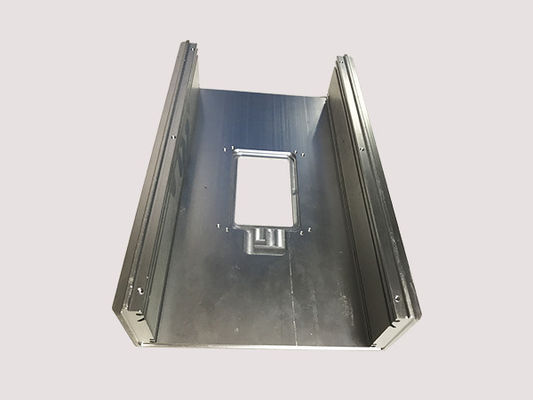

Low Tolerance Mill Finish CNC Aluminum Profiles ISO9001 SGS Approval

Low Tolerance Mill Finish CNC Aluminum Profiles ISO9001 SGS Approval

  • Low Tolerance Mill Finish CNC Aluminum Profiles ISO9001 SGS Approval
Low Tolerance Mill Finish CNC Aluminum Profiles ISO9001 SGS Approval
Product Details:
Place of Origin: China
Brand Name: DeYuan
Certification: ISO9001:2004, SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: EPE wrapped and in wooden box
Delivery Time: 30 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Tolerance: +/-0.05mm Tooling: Design And Making By Ourself
Materials: Aluminum Approach: Cutting/Punching/Bending
High Light:

aluminium alloy profile

,

cnc machined aluminum parts

Mill Finish Aluminum Extrusion Fabrication With Milling And Driliing







Management Systems



(1) EN ISO 9001:2008

With the implementation of Quality Management System , the company management is committed to providing products and services that comply with legal and regulatory requirements and that meet customer requirements , with a view to their dedication to the company. The company was certified by the independent TUV HELLAS, member of TUV NORD Group of Germany to implement a Quality Management System according to the international standard ISO 9001 of 1994 version , the first time, in June 2000 , while in July 2009 certified according to the new , improved standard of ISO 9001 version 2008.



(2) ISO 14001:2004/EN ISO 14001:2004

To ensure the harmonious coexistence of its activities with the natural environment, ALUMIL has established and applies from mid-2002 at the factory in Kilkis, the certified Environmental Management System in accordance with the International Standard ISO 14001:1996



Primary Technical Data



1) Chemical composition



Alloy Si Mg Fe Cu Mn Zn Cr Ti
6063 0.2~0.6 0.45~0.90 <0.35 <0.10 <0.10 <0.10 <0.10 <0.10
6060 0.3~0.6 0.35~0.60 0.1~0.3 ~ <0.10 <0.15 <0.05 ~
6463 0.2~0.6 0.45~0.90 <0.15 <0.20 <0.05 <0.05 ~ ~
6005 0.6~0.9 0.40~0.60 <0.35 <0.10 <0.10 <0.10 <0.10 <0.10
6061 0.4~0.8 0.80~1.2 <0.70 0.15~0.4 <0.15 <0.25 0.04~0.35 <0.15
6082 0.7~1.3 0.60~1.2 <0.50 <0.1 0.4~1.0 <0.20 <0.25 <0.10
6351 0.7~1.3 0.40~0.8 <0.50 <0.1 0.4~0.8 <0.20 ~ <0.10



2) Mechanical property



Alloy Temper Tensile strength Yield strength Elongation

6063



T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T5 ≥ 265Mpa ≥ 245Mpa ≥ 8%
